Photovoltaic Glass |
|
|
Photovoltaic Glass |

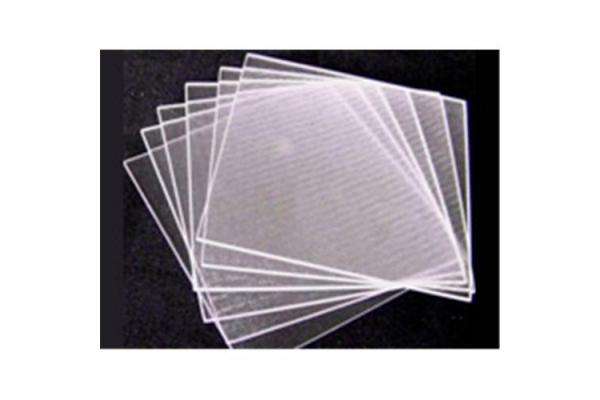

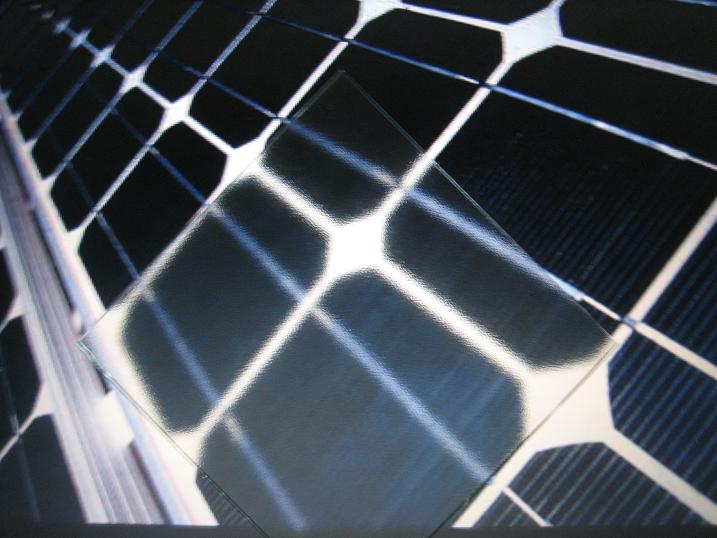

Ultra Clear Solar Glass:

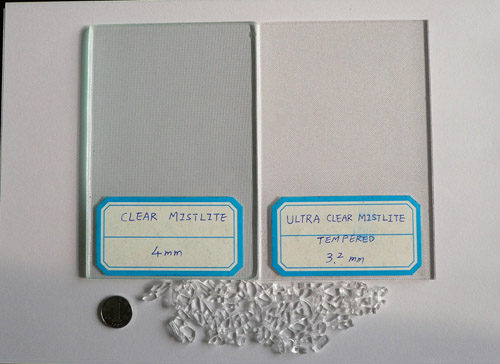

Tempered Low-iron Mistlite/Matt
Thickness:
3.2mm, 4mm etc.
Sizes: 1830*1220mm, 2440*1830mm ,1700*900,1960x960,1960x1220 etc.
Or according to client`s requirement customized.
Features:
Solar Direct Transmission: ≥ 91.6-95%.
Light Transmittance: ≥ 92.4%.
Iron Content (Fe2O3): ≤ 120ppm.
Heat Conductivity (20 º C): 1.06W/m· K.
Overall Bow: ≤ 0.2%.
Density: 2.5g/cm3.
Young's Modulus: 73GPa.
Tensile Strength: 42MPa.
Thermal Expansion Coefficient: 9.03*10-6.
Softening Point: 720º C.
Annealing Point: 570º C.
Strain Pont: 500º C.
|
IntroductionOnline Inquiry |
Ultra clear solar glass is one kind of low iron glass, which is also called photovoltaic glass and energy saving glass which mainly used on solar panel because of its super light transmittance rate.

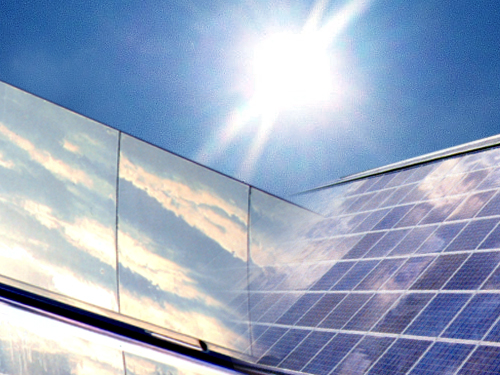

Photovoltaic glass is a special glass that is used to generate PV power. The solar cells are embedded between two glass panes and, when used in PV glass application, they are either crystalline silicon or thin film.

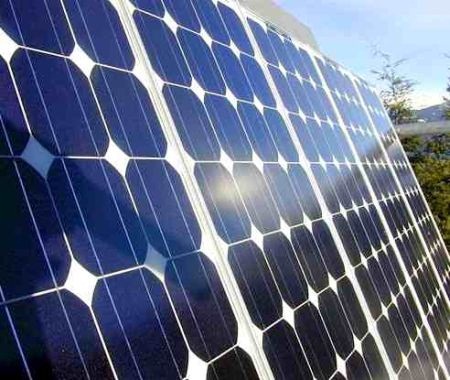

When applying crystalline silicon solar cells, the ultra-clear figured glass is used as cover of solar PV cells while super clear float glass is for thin film solar cells.

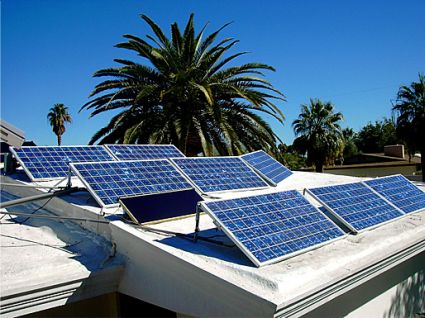

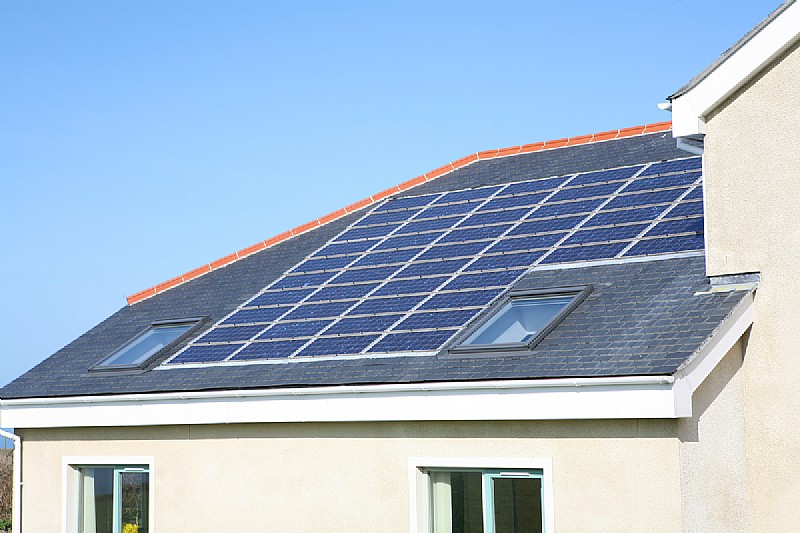

The current application of PV glass technology is mainly to power the building. Due to limited availability of sunlight, PV glass is not in any position to be able to provide sufficient energy for the whole building. Yet, it is believed that there is still room for growth in this particular industry as long as the power generated is enough to power basic home appliances like cell phone recharge and computers.

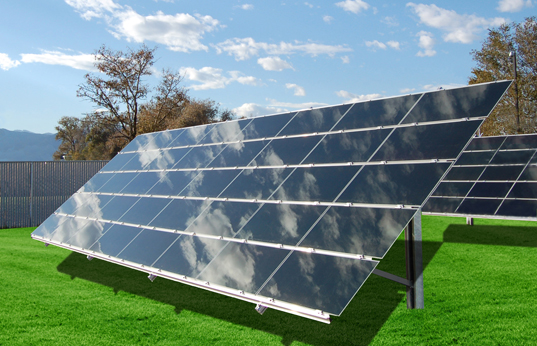

Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity. by considering its efficiency, we are using high-transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality by elimination unwanted distortions with the advanced optical technology.
|
|
|
|
|
